Description
Technical Specifications
Product Type: LED Downlight
Main Material: Aluminum
Color: White
Finishing: Powder Coated
Adjustable: Yes
Input Voltage: 220–240VAC
Power: 15W
Light Source: LED
Output Lumen: 1350 lm
CCT Options: 3000K | 4000K | 6000K
CRI: 80+
Beam Angle: 15° | 24° | 38°
UGR: <22
Dimmable: No
Mechanical Specifications

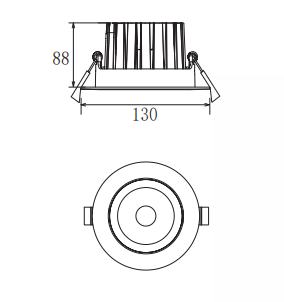

Dimensions: Dia: 130 mm × H: 88 mm
Cutout Size: Dia: 115 mm
Installation: Ceiling Recessed
Safety Class: Class II
IP Rating: IP20
Optional Features
-
TRIAC – Phase cut dimming
-
0–10V dimming
-
DALI dimming
-
+EK3 – 3h emergency kit
-
+EK1.5 – 1.5h emergency kit
