Description
Technical Specifications
Product Type:
LED Downlight
Main Material:
Aluminum
Color:
White
Finishing:
Powder Coated
Adjustable:
Yes
Input Voltage:
220–240VAC
Power Consumption:
18W
Light Source:
LED
Output Lumen:
1800 lm
CCT Options:
3000K | 4000K | 6000K
CRI:
80+
Beam Angle Options:
15° | 24° | 38°
UGR:
<22
Dimmable:
No
Mechanical Specifications

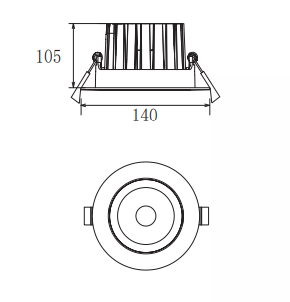

Dimensions:
Dia: 140 mm
Height: 105 mm
Installation:
Ceiling Recessed
Cutout Size:
Dia: 115 mm
Safety Class:
Class II
IP Rating:
IP20
Optional Features
-
TRIAC: Phase cut dimming
-
0–10V: 0–10V dimming
-
DALI: DALI dimming
-
+EK3: 3h emergency kit
-
+EK1.5: 1.5h emergency kit
