Technical Specifications

Product Type: Ceiling Recessed LED Downlight
Power: 7W
Input Voltage: 220–240VAC

Light Source: LED
Luminous Output: 630 lm
CCT: 3000K | 4000K | 6000K
CRI: 80+ | 90+

Beam Angle: 18° | 24° | 36° | 60°
UGR: <19
Dimmable: No

Mechanical Specifications

Main Material: Die-cast aluminum
Finishing: Powder coated
Color: White
Adjustable: No

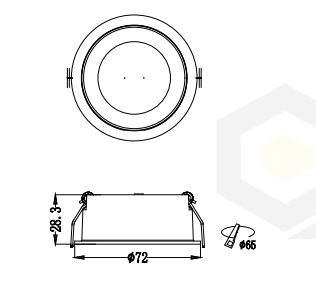

Dimensions: Ø72 × H28 mm
Cutout: Ø65 mm
Installation: Ceiling recessed

Safety Class: Class II
IP Rating: IP40

Additional Features

Optional Functions:

• TRIAC: Phase-cut dimming
• 0–10V: 0–10V dimming
• DALI: DALI dimming
• +EK3: Emergency kit (3 hours)
• +EK1.5: Emergency kit (1.5 hours)
