Technical Specifications

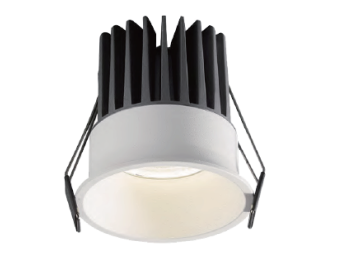

Product Type: Ceiling Recessed LED Downlight
Power: 10W
Input Voltage: 220–240VAC

Light Source: LED
Luminous Output: 950 lm
CCT: 3000K | 4000K | 6000K
CRI: 80+

Beam Angle: 15° | 24° | 38°
UGR: <22
Dimmable: No

Mechanical Specifications

Main Material: Die-cast aluminum
Finishing: Powder coated
Color: White Trim
Adjustable: No

Dimensions: Ø82 × H85 mm
Cutout: Ø75 mm
Installation: Ceiling recessed

Safety Class: Class II
IP Rating: IP20

Additional Features

• Multiple beam angles for versatile lighting applications
• Compact and efficient design
• Suitable for residential and commercial use

Optional Features:

• TRIAC dimming (phase cut)
• 0–10V dimming
• DALI dimming
• +EK3: 3-hour emergency kit
• +EK1.5: 1.5-hour emergency kit
