Description
Technical Specifications

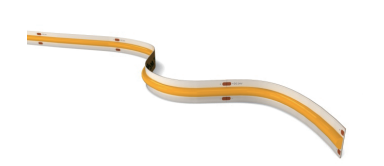

Product Type: COB LED Strip
Power Consumption: 10W/m
LED Density: 384 LEDs/m
Input Voltage: CV 12V / 24V
Dimmable: Yes (PWM, DALI, 0/1–10V, TRIAC)
Beam Angle: 180°
Color Consistency: One BIN (3 SDCM)
CRI: Ra > 98
Available CCT:
1800K | 2200K | 2400K | 2700K | 3000K | 3500K | 4000K | 4500K | 5000K | 5700K | 6000K | 6500K
Color Options:
Red | Orange | Yellow | Green | Cyan | Blue | Purple | Pink | Tiffany Blue | Marrs Green
Lifespan: >60,000 Hours

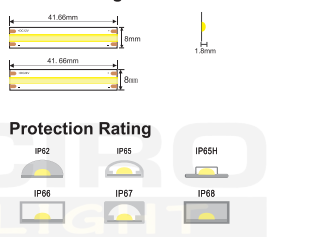

Mechanical Specifications
Dimensions: 5000 × 8 × 1.8 mm
PCB Width: 8 mm
LED Type: COB
Cuttable Length:
41.66 mm (12V) / 41.66 mm (24V)
Working Temperature: -25°C ~ 45°C
Protection Rating Options:
IP62 | IP65 | IP65H | IP66 | IP67 | IP68
Photometric Data (Typical)
-
2700K: 890 lm/m | 89 lm/W | R9 > 40 | ERP Class G
-
3000K: 970 lm/m | 97 lm/W | R9 > 40 | ERP Class F
-
4000K: 1020 lm/m | 102 lm/W | R9 > 40 | ERP Class F
Certifications & Features
Compliance: CE, LM-80
SDCM: <6
