Description

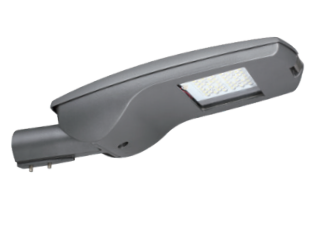

Designed for dependable outdoor lighting, the VIALIS 25-DA (BT1601-25W) is a 25W LED street light built with a robust die-cast aluminum body and 5mm tempered glass. Its IP66 ingress protection helps guard against dust and water, while IK10 impact protection offers added resistance to mechanical impact.
The fixture operates on 220–240VAC and produces 3,250 lumens. Choose from 3000K, 4000K, or 6000K color temperatures, with a CRI of 70+. It is available with Type II or Type III light distribution and supports DALI dimming. The adjustable design allows the fixture to be aimed as needed, and its smooth-top body is finished in powder-coated dark green.
Measuring 560 × 241 × 111 mm, the VIALIS 25-DA is a Class I luminaire suited to outdoor street-lighting applications. A 10-year warranty is available upon request.
Key Specifications
- Item code: BT1601-25W
- Product name: VIALIS 25-DA
- Product type: LED street light
- Power: 25W
- Luminous output: 3,250 lm
- Input voltage: 220–240VAC
- CCT options: 3000K / 4000K / 6000K
- CRI: 70+
- Light distribution: Type II / Type III
- Dimming: DALI
- Material: Die-cast aluminum with 5mm tempered glass
- Finish: Powder-coated dark green
- Adjustment: Adjustable
- Protection: IP66, IK10
- Safety class: Class I

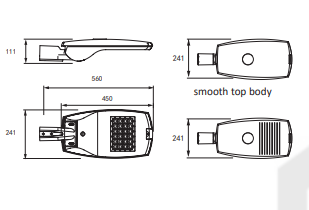

- Dimensions: 560 × 241 × 111 mm
- Warranty: 10 years upon request
