Description
Technical Specifications

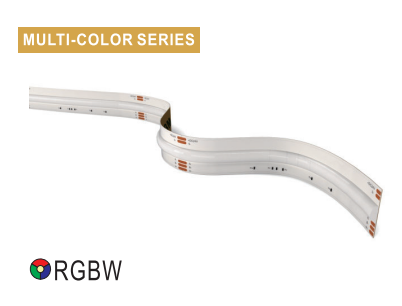

Product Type: COB RGBW LED Strip
Power Consumption: 18W/m
LED Density: 784 LEDs/m
Input Voltage: CV 24V
Dimmable: Yes (RGBW Controllers)
Beam Angle: 180°
Color Type: RGBW (Multi-color)
Color Consistency: One BIN (3 SDCM)
Lifespan: >60,000 Hours
Mechanical Specifications
Dimensions: 5000 × 12 × 1.8 mm
PCB Width: 12 mm
LED Type: COB

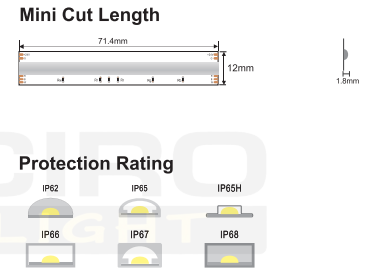

Cuttable Length: 71.4 mm (24V)
Working Temperature: -25°C ~ 45°C
Protection Rating Options:
IP62 | IP65 | IP65H | IP66 | IP67 | IP68
Photometric Data (Typical)
-
Blue: 96.3 lm/m | 21.4 lm/W | Wavelength: 455–465 nm
-
Green: 468 lm/m | 104 lm/W | Wavelength: 520–530 nm
Certifications & Features
Compliance: CE, LM-80
SDCM: <6
