LUNA – Linear downlight 12

Description: LED linear light module for magnetic tracking system

Item Code: CIR-HS26-12T-12W

Product Type: LED linear downlight FOR 48V MAGNETIC TRACK

Main Material: Aluminum

Finishing: Powder Coated

Color: Black

Adjustable: No

Input: 48VDC

Power(W): 12W

Light Source: LED

Output Lumen(lm): 1080lm

CCT(K): 3000K | 4000K | 6000K

CRI: 90+

Beam Angle(°): 36 °

UGR: <19

Dimmable: No

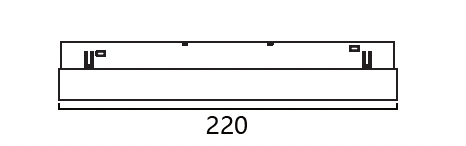

Dimensions(mm): 220 x 22 x 45mm

Cutout(mm): —

Safety Class: Class 3

IP Rating: IP20

Other: optional

-0-10V: 0-10V dimming

-DALI: DALI dimming
