Description
Product Type: LED strip light
Main Material: Silicon
LED Type: 2835 SMD
LED Quantity/m: 120 pcs
Connection: 2 x 0.5MM2 / 20AWG wire / DC connector
Input: 24V (Range:23˜25V DC)
Power(W): 5W – 10W – 14.4W
MAXRUN in series: 5W/m 10m(2.1A) | 10W/m 8m(3.3A) | 14.4W/m 5m(3A)
Light source: LED
Operating Temperature: -25-70° C
Ambient Temperature: -25-50° C
Storage Temperature: -230-80° C
Lifespan: 50,000 Hours
CCT(K): 2400K| 3000K| 4000K| 5000K| 5700K|6500K| RGB| RGBW| Tuneable White
CRI: Ra+82;R9 +7
Beam Angle(°): 120°
UGR: <19
Output Lumen(lm): 5W/m 455˜570Lm | 10W/m 870˜1090Lm | 14.4W/m 1210˜1526Lm
Efficacy: 5W/m 91˜114Lm/W | 10W/m 87˜109Lm/W | 14.4W/m 84˜106Lm/W
Dimmable: YES
Dimensions(mm): L=5000mm W= 8mm H= 1.4mm
Customised length/reel: 0.1 to 30 meters

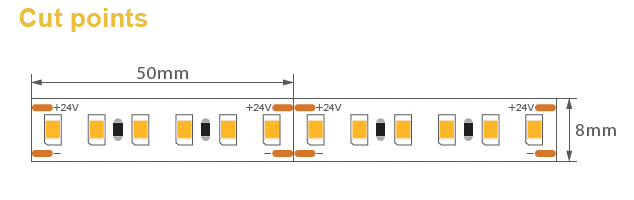

Cut point(mm): 50mm – 100mm
Installation: 3M 300 LSE adhesive tape
Safety Class: Class 2
IP Rating: IP20
Other: optional
-TRIAC: Phase cut dimming
-0-10V: 0-10V dimming
-DALI: DALI dimming
